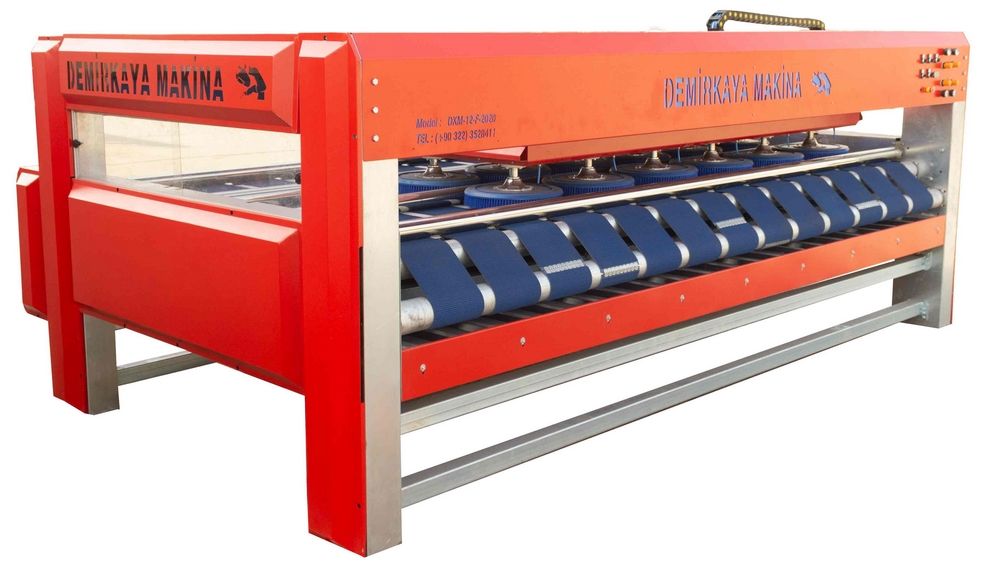

Carpet Washing Machine 420
DKM-12-F-420
EXPLANATION
Automatic carpet washing machine is manufactured using superior technology. It saves labor, time, water and electricity. This automatic machine is a belted model, that is, a conveyor model. Automatic Carpet Washing Machine with 12 circular brushes, bottom washing and helical roller brushes does not require much manpower. It is produced in accordance with long working tempos for carpet washing factories with its solid chassis.
Tag: Carpet and Car Washing Machine, industrial carpet and car wash, Carpet Drying Machine Demirkaya Makina was established in Adana in 2008 and its fields of activity are car care and carpet washing services and machine production.
Carpet Washing Machine 420 Technical Data Overview
| TECHNICAL SPECIFICATIONS | DKM-12-F-420 |
|---|---|
| Machine Model | DKM-12-F-420 |
| Machine Carpet Cleaning Width | 420cm |
| Machine Length | 240cm |
| Machine Height | 185cm |
| Detergent Tank | 200 Liter |
| Ideal Working Speed | 1.2 m /min |
| Number of Circular Brushes | 12 Pieces |
| Pressure Water System | Available |
| Carpet Carrying Stand Supplied with Machine | 1 Piece |

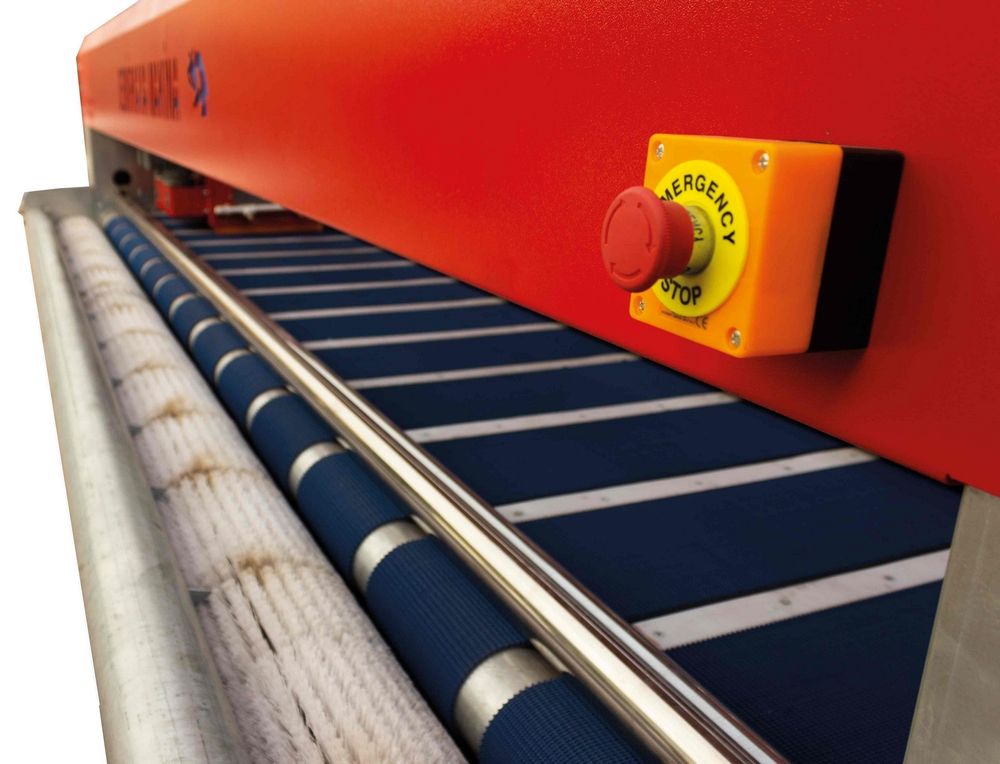

| Emergency Stop Button Front and Back | Available |
| Brushes Work Up and Down Automatically | Available |
| Machine Belt Speed Setting | Available |

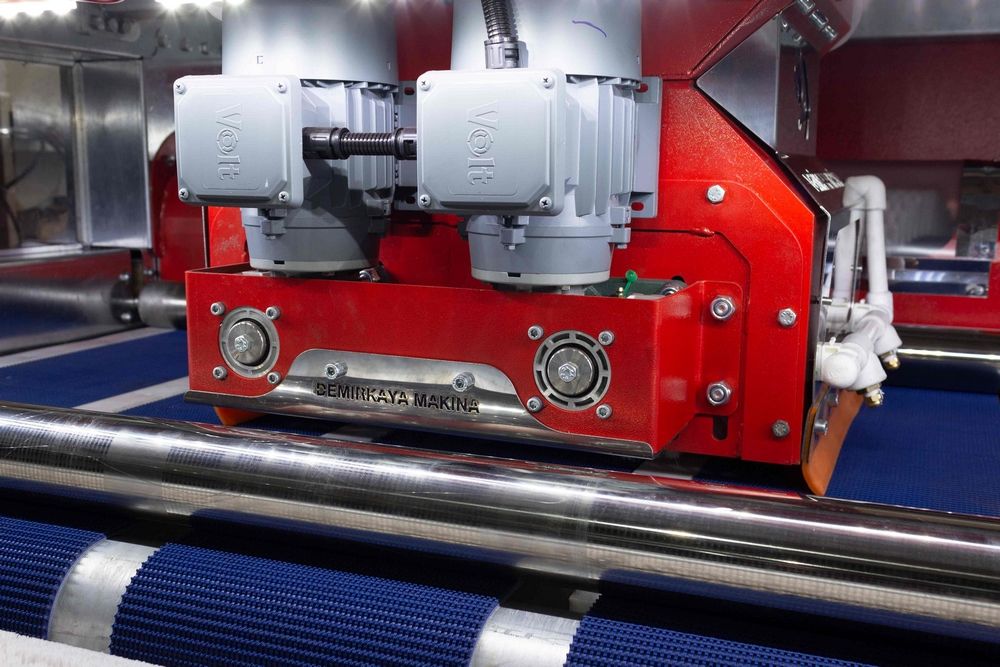

| A separate motor is used for each brush | √√ |
| Carpet Detergent Engine | Available |
| Machine Consists of Pieces Bands | √√ |
| Warranty Period | 2 Years |
| Rape Scraper System | Available |
| Transport Size (cm) | 450x240x185 |
| Machine Model Year | 2020 |
| Machine Voltage | 380 Volt – 50 Hz |
| Maximum Washing Capacity | 1000 m2 |
| Minimum Washing Capacity | 500 m2 |
| Water Consumption | 30-60lt/min |
| Electricity Consumption | 18 Kwa/Hour |
| Roll Scanning Brush | 1 Piece |
| Bottom Washing Brush | Available |
| Carpet Pre-Soak Pool | 1 Piece |
| Band Forward and Backward Operation Button | Available |
| Works with Weather System | √√ |
| Machine Laser Sensor Controlled | √√ |
| Led Lighting | Available |
| Pressure Water Engine | Available |
| Disassembled Installation | √√ |
| Weight | 2200 Kg |
| It is Laser Cut and Special Production | √√ |
| Control Panel (PLC & Manual | √√ |
HOW DOES THE AUTOMATIC CARPET WASHING MACHINE WORK?
The working principle of the Automatic Carpet Washing Machine, which is produced using the latest technology and first class materials, is very practical. Our fully automatic carpet washing machine, which saves labor, can easily work with a single personnel. The action to be taken by the personnel working while using the Automatic Carpet Washing Machine is to place the carpet passed through the whisking machine into the boiler located in front of the machine. The carpet, which absorbs the chemical water in the boiler, is held by the end and placed on the band. After that, the only thing to do is to press the start button.

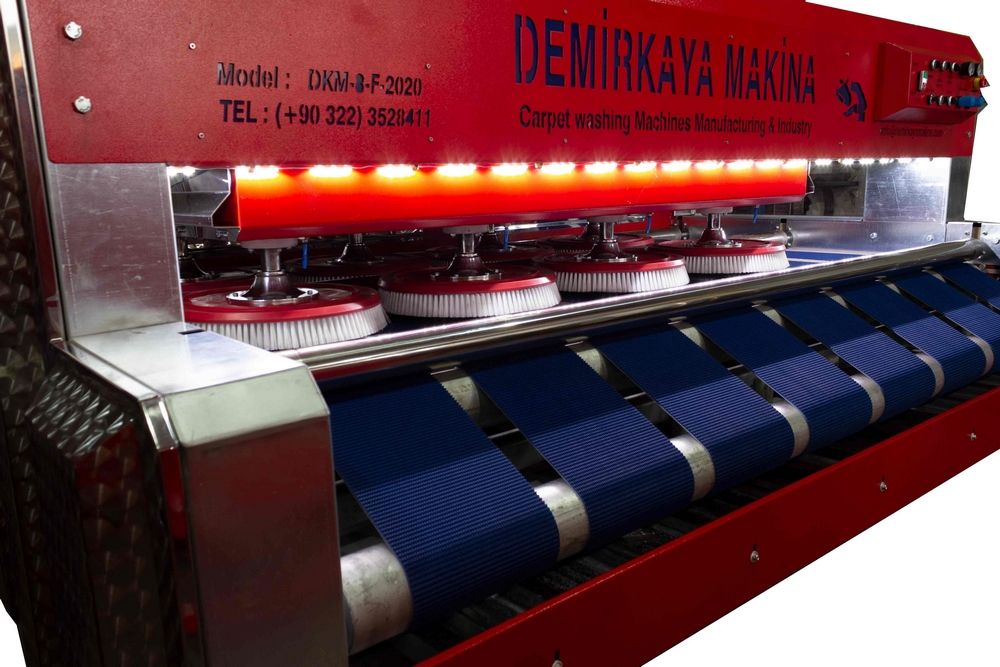

CARPET WASHING PHASE; If the wetness of the carpet advancing on the tape is insufficient after leaving the boiler, it is wetted with water supplement. After wetting, it is automatically detergentsed by means of nozzles. The detergent is washed by 12 circular brushes with a diameter of 460 mm, which are moving to the right and left. After the circular brushes, the carpet goes under the roller brush. Since the roller brush specially made by our company is in the form of a helix, it not only washes the carpet, but also pushes the piles of hair, fluff and brushing to the left and right. Thanks to this feature of our automatic carpet washing machine, you will not have to clean the pile for hours after the carpet dries.

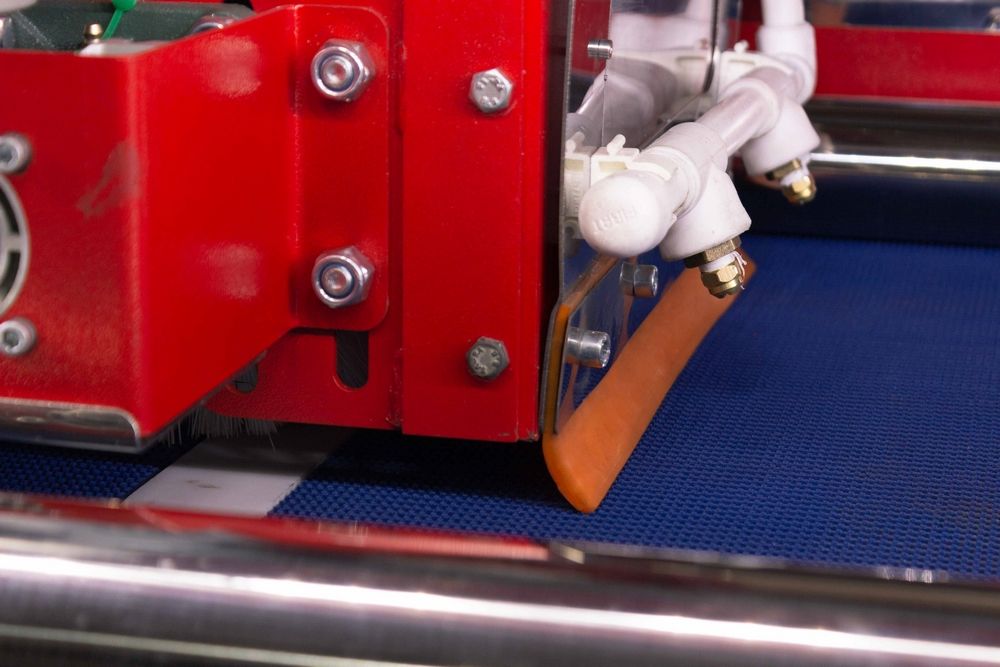

CARPET RINSE STAGE; The carpet passing through the roller brush is rinsed with pressurized water through the nozzle. After rinsing, the carpet automatically takes the form of a roll on the back. As Demirkaya Makina, we provide carpet stands to our customers alongside our machines. In this way, you can drop the roll-shaped carpet onto the coffee table with your hand without lifting it. You can easily push the carpet on the coffee table into the carpet wringing machine.
